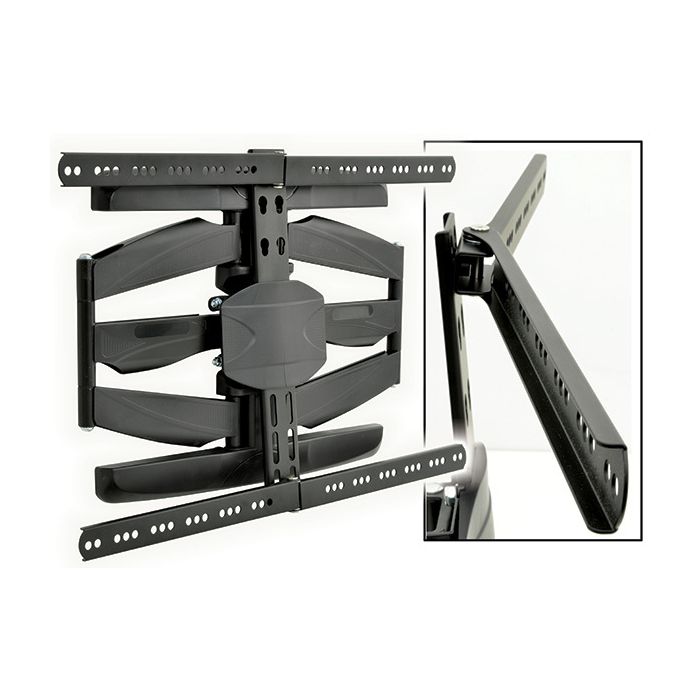

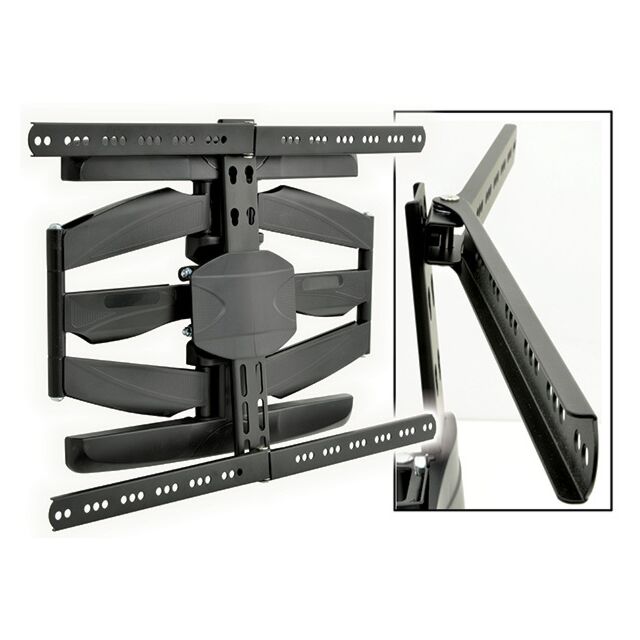

FULL MOTION TV WALL BRACKET FOR CURVED OR FLAT SCREENS

This full motion TV wall bracket has a special angle adjustable mount which will fit a flat or a curved screen. Suitable for screens from 32" to 65".

Suitable for 32" to 65" sized flat or curved TV screens
Compatible with VESA mounting patterns
-2° to 12° tilt mechanism
90° pan from wall plate
45° swivel from arm joint
Sturdy dual arm support
Integrated cable management system
Installation hardware include

Screen size
32" - 65"
Max. hole spacing
600 x 400mm
Max. VESA
600 x 400
Tilt range
-2° to 12°
Max. weight load
45kg
Distance from wall
74 - 514mm
Wall plate dimensions
477 x 394mm
Bracket dimensions
648 x 440mm
Weight
7.35kg
TV fixing screws provided
4 x M4 25mm, 4 x M5 25mm, 4 x M6 25mm, 4 x M8 25mm
